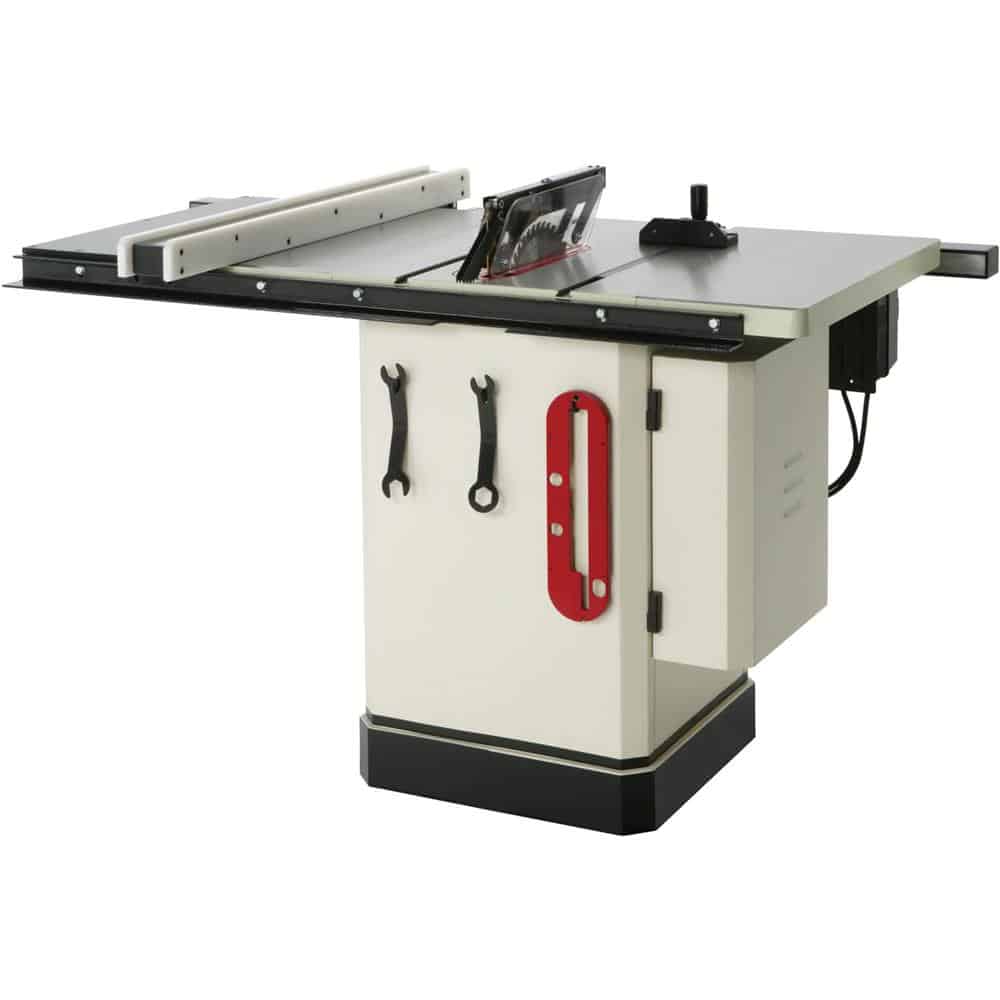

Shopfox W1819 10″ 3 HP Cabinet Table Saw
What we have here is one of the most efficient and effective cabinet table saws that exist. Built and designed with quality, efficiency and effectiveness as the main drive this Shopfox W1819 10″ 3 HP Cabinet Table Saw may just overtake every other saw out there.
With this cabinet table saw we are looking at a 3HP motor and a triple belt to drive to the massive cast iron table. This table is the definition of power. It’s built with durability as an aim so you can expect it to last you a lifetime. That is with good care and proper maintenance.
The Shop Fox W1819 table saw measures 40 by 45-1/2 by 62-inch overall (HxWxD) and has a floor-to-table height of 34-inch, and has an approximate shipping weight of 539 pounds. The table measures 27 by 40-1/4-inch (W x D) and 27 by 53-5/8-inch that is together with the extension.
You’ll love the 4-inch dust collection port. That helps to keep your floor free from wood dust. All in all this table saw comes with a rigid quality control program to assure safe and reliable operation. It’s that table that was designed with the worker in mind. So get yours now and start working on your project.
- Is very easy to handle and use
- Is sharp and offers clean cuts
- Strong enough to cut on any type of wood
- Is hard-wearing strong and durable
- Is quite expensive to buy
- May be slightly hard to manage and maintain
The Shopfox W1819 10″ 3 HP Cabinet Table Saw features a blade guard assembly which consists of a clear polycarbonate shield, the spreader, and the anti-kickback pawls on each side of the spreader.
Guard, Spreader, Anti-Kickback Pawls
The clear polycarbonate guard allows the operator to see the blade cut the workpiece during operation. This guard is designed to lift as the workpiece is pushed into the blade and remains in contact with the workpiece throughout the entire cut.
Miter Fence with Flip Stop
The Shopfox W1819 10″ 3 HP Cabinet Table Saw also features a miter fence with flip stop. This miter fence provides greater workpiece support than the miter gauge alone, and is ideal for longer workpieces.
The flip stop comes in handy when making multiple cuts of the same width. It can be pivoted out of the way to allow longer workpieces to be cut, and pivoted back down to make additional cuts at your desired cutting width.
This Shopfox W1819 10″ 3 HP Cabinet Table Saw allows the operator to tilt the blade to the left anywhere between 0 and 45-degrees. Great for cutting bevels, compound miters or chamfers. Easily adjust your cutting angle by loosening the blade tilt lock and turning the blade tilt handwheel to position the blade at the desired angle.
The riving knife works in the same manner as the spreader on the blade guard assembly. It is a metal plate that prevents the newly cut workpiece from pinching the backside of the blade and causing kickback.
Specifications and Features
- Motor: 3 HP, 220V, single-phase, 12.8A
- Blade tilt: Left, 0-45-degrees
- Cast iron table size: 27 inches x 40-1/4 inches
- Table size with extension: 27 inches x 53-5/8 inches
- Arbor size: 5/8 inches
- Max. rip capacity: 29-1/2 inches
- Overall dimensions: 62 inches L x 41 inches W x 40 inches H
- Approximate shipping weight: 542 lbs.
- Precision-ground and polished cast iron table and wings
- Massive cast iron trunnions
- 4 inch dust port
- Miter gauge with adjustable T-slot and anodized fence with extension and flip stop
- Camlock fence with HDPE face
- Includes standard and dado table inserts
- Quick-release blade guard with independent-lifting sides and retractable pawls
- Magnetic switch with thermal overload protection
Things to look for in a Cabinet saw
The primary job of a cabinet saw is to cut through thick, dense wood. You need two things to do this: a sharp blade and a powerful motor. The blades are bought separately, so your first consideration in buying a cabinet saw is how powerful it is.
What’s going to shape your needs is the kind of cutting you’re going to do. The general rule of thumb is that if your wood is two inches or less, you can get by with a motor between 1-2 HP.
Cabinet saws are not small tools. They weigh hundreds of pounds, and if you order one from an online retailer, it will arrive on multiple pallets. You should be aware of this going in.
One advantage of such a heavy, stable saw is that it can be precise in how it cuts. Since it has a powerful motor that isn’t taxed too badly by dense, thick wood, its cuts should also be predictable. When you go lighter and more portable, you are trading some accuracy for it. Bigger, heavier, and immobile means more accurate.
Table saws are inherently less safe because operating them means putting your hands close to sharp, spinning blades. There are techniques and little extra tools that users have adopted over the years to reduce accidents, but saw manufacturers have also responded by making safety a primary concern.
The more you use your saw, the more waste you create. Cabinet saws are designed to be rugged enough for constant, daily use, so the potential for massive amounts of sawdust is pretty high. That dust can make it harder for you to see what you’re working on. It’s also a health hazard, especially in an enclosed place like a workshop.
Choosing a cabinet table saw is a big decision. It’s not that there are a million options; the problem is that the options are all quite similar. It can be hard to tell if you are getting a good value when comparing the different models.
This Shop fox W1819 10″ 3 HP Cabinet Table Saw will provide you with almost anything and everything. Whatever it is that you want or need in a cabinet table saw the guide above will help you. Enjoy your shopping and good luck.
